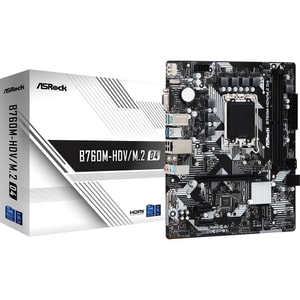

ASRock B760M-HDV/M.2 D4
Key Features
- Socket
- LGA1700
- Chipset
- Intel B760
- Form Factor
- Micro-ATX
- Memory Type
- DDR4
- M.2 Slots
- 2 x M.2
Price comparison • £75.76 to £80.81 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The ASRock B760M-HDV/M.2 D4 pairs the LGA1700 socket with the Intel B760 chipset, supporting the latest Intel processors and a solid feature set for mainstream builds. Its Micro-ATX size offers a compact footprint without sacrificing essential expansion, fitting comfortably into smaller cases while still providing good connectivity. DDR4 memory support ensures compatibility with widely available RAM, and the board accommodates DDR4-5333+ (OC) speeds for users aiming to maximise memory bandwidth. Read More...
You get two M.2 slots supporting Gen4 and Gen3 speeds, so high-speed NVMe storage is well covered for both primary and secondary drives. The single PCIe 4.0 x16 slot delivers full bandwidth for modern graphics cards, while 1 GbE networking provides reliable wired connectivity for home or office use. Two DIMM slots allow up to 64 GB of memory, giving this board enough capacity for gaming or productivity tasks.
Product Information
| Product Name | ASRock B760M-HDV/M.2 D4 |
|---|---|
| Brand | ASRock |
| Model Number | B760M-HDV/M.2 D4 |
Product Features
| Socket | LGA1700 |
|---|---|
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
| Max Memory | 64 GB |
| Memory Slots | 2 x DIMM |
| Memory Speed Support | DDR4-5333+ (OC) |
| M.2 Slots | 2 x M.2 |
| M.2 Support | 1 x Gen4; 1 x Gen3 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 1 x PCIe x16 |
| Primary Pcie Version | PCIe 4.0 |
| Ethernet | 1 GbE |
| Rear USB | 1 x USB‑C 5 Gbps; 3 x USB‑A 5 Gbps; 2 x USB‑A 480 Mbps |
| Internal USB Headers | 1 x USB‑C header; 2 x USB 3.x headers; 2 x USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS |
