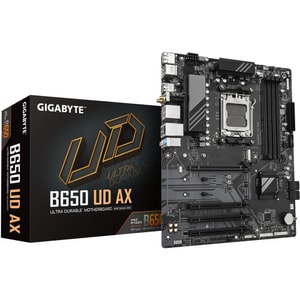

Gigabyte B650 UD AX
Key Features
- Socket
- AM5
- Chipset
- AMD B650
- Form Factor
- ATX
- Memory Type
- DDR5
- M.2 Slots
- 3 x M.2
Best price £115.78 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Gigabyte B650 UD AX is an ATX board, fitting standard mid- or full-tower cases for builds that need expansion space. It uses the AM5 socket and AMD B650 chipset, supporting the latest Ryzen CPUs and offering a strong feature set for mainstream systems. DDR5 memory support with speeds up to 7600 MT/s (OC) gives access to high performance RAM options. Read More...
This model provides three M.2 slots supporting Gen5 and Gen4 speeds, so you can install fast NVMe drives for rapid storage access. Three PCIe x16 slots with PCIe 5.0 as the primary slot allow for high-bandwidth GPUs or add-in cards. Four DIMM slots and a 256 GB memory ceiling enable large memory configurations for demanding workloads. 1 GbE networking and Wi‑Fi 6 cover both wired and wireless connections, while Bluetooth 5.0 offers compatibility with modern peripherals.
Product Information
| Product Name | Gigabyte B650 UD AX |
|---|---|
| Brand | Gigabyte |
| Model Number | B650 UD AX |
Product Features
| Socket | AM5 |
|---|---|
| Chipset | AMD B650 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-7600 (OC) / DDR5-4800 (JEDEC) |
| M.2 Slots | 3 x M.2 |
| M.2 Support | 1 x Gen5; 2 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 3 x PCIe x16 |
| Primary Pcie Version | PCIe 5.0 |
| Ethernet | 1 GbE |
| Wi-Fi | Wi‑Fi 6 |
| Bluetooth | Bluetooth 5.0 |
| Rear USB | 1 x USB-C (USB 3.2 Gen 1); 2 x USB-A (USB 3.2 Gen 2); 6 x USB-A (USB 2.0) |
| Internal USB Headers | 1 x USB-C header; 1 x USB 3.x header; 3 x USB 2.0 headers |
| CPU Power | 1 x 8-pin EPS |
| RGB Headers | 3 x ARGB; 1 x RGB |
