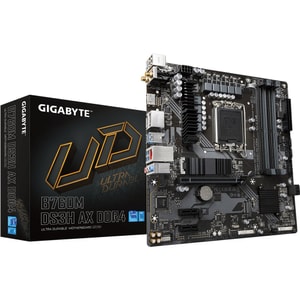

Gigabyte B760M DS3H AX DDR4
Key Features
- Socket
- LGA1700
- Chipset
- Intel B760
- Form Factor
- Micro-ATX
- Memory Type
- DDR4
- M.2 Slots
- 2 x M.2
Best price £135.37 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Gigabyte B760M DS3H AX DDR4 pairs the LGA1700 socket with the Intel B760 chipset, supporting a wide range of current Intel CPUs and offering a solid foundation for mainstream and performance builds. Its Micro-ATX form factor strikes a balance between expandability and compactness, fitting comfortably in most cases while still providing key features. DDR4 memory support with speeds up to DDR4-5333 (OC) enables high memory bandwidth for demanding applications. Read More...
This model offers two M.2 slots supporting Gen4 speeds, so you can install fast NVMe SSDs for rapid storage performance. Four DIMM slots accommodate up to 128 GB of RAM, giving plenty of headroom for multitasking or memory-intensive workloads. 2.5 GbE networking delivers high-speed wired connectivity, while Wi-Fi 6E and Bluetooth 5.3 provide fast wireless options for flexible networking.
Product Information
| Product Name | Gigabyte B760M DS3H AX DDR4 |
|---|---|
| Brand | Gigabyte |
| Model Number | B760M DS3H AX DDR4 |
Product Features
| Socket | LGA1700 |
|---|---|
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
| Max Memory | 128 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR4-5333 (OC) / DDR4-3200 (JEDEC) |
| M.2 Slots | 2 x M.2 |
| M.2 Support | 2 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 1 x PCIe x16 |
| Primary Pcie Version | PCIe 4.0 |
| Ethernet | 2.5 GbE |
| Wi-Fi | Wi‑Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Rear USB | 1 x USB‑C 10 Gbps; 3 x USB‑A 5 Gbps; 2 x USB‑A 480 Mbps |
| Internal USB Headers | 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS |
| RGB Headers | 1 x ARGB; 1 x RGB |
