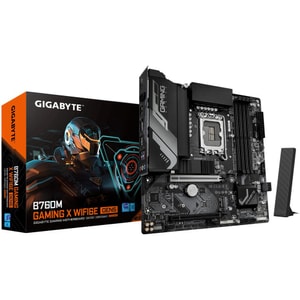

Gigabyte B760M GAMING X WIFI6E GEN5
Key Features
- Socket
- LGA1700
- Chipset
- Intel B760
- Form Factor
- Micro-ATX
- Memory Type
- DDR5
- M.2 Slots
- 2 x M.2
Price comparison • £132.82 to £142.65 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Gigabyte B760M GAMING X WIFI6E GEN5 is a Micro-ATX board, fitting compact cases while still offering strong expansion for mainstream builds. LGA1700 socket support means it works with Intel’s latest desktop CPUs. The Intel B760 chipset provides a solid platform for daily computing and gaming. Read More...
This model uses DDR5 memory, with four DIMM slots and support for speeds up to DDR5-7600 (OC) or DDR5-4000 (JEDEC), giving builders flexibility for high-capacity or high-speed RAM. Two M.2 slots support Gen4 drives, allowing fast NVMe storage in both slots. PCIe 5.0 for the primary x16 slot ensures top-end GPU bandwidth, while a second PCIe x16 slot enables extra expansion options.
Product Information
| Product Name | Gigabyte B760M GAMING X WIFI6E GEN5 |
|---|---|
| Brand | Gigabyte |
| Model Number | B760M GAMING X WIFI6E GEN5 |
Product Features
| Socket | LGA1700 |
|---|---|
| Chipset | Intel B760 |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-7600 (OC) / DDR5-4000 (JEDEC) |
| M.2 Slots | 2 x M.2 |
| M.2 Support | 2 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 2 x PCIe x16 |
| Primary Pcie Version | PCIe 5.0 |
| Ethernet | 2.5 GbE |
| Wi-Fi | Wi‑Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Rear USB | 3 x USB‑A 5 Gbps (USB 3.2 Gen 1); 5 x USB‑A 480 Mbps (USB 2.0/1.1); 1 x USB‑C 5 Gbps (USB 3.2 Gen 1) |
| Internal USB Headers | 1 x USB‑C header (USB 3.2 Gen 2); 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS |
| RGB Headers | 3 x ARGB; 1 x RGB |
