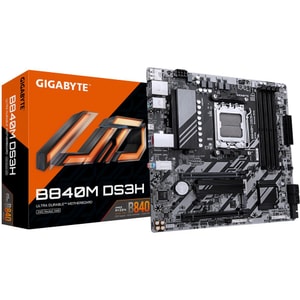

Gigabyte B840M DS3H
Key Features
- Socket
- AM5
- Chipset
- AMD B840
- Form Factor
- Micro-ATX
- Memory Type
- DDR5
- M.2 Slots
- 2 x M.2
Price comparison • £104.07 to £119.41 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may vary
3-5 days3-5 daysProduct Description
The Gigabyte B840M DS3H runs its primary slot at PCIe 4.0, delivering high bandwidth for the latest graphics cards and NVMe storage. This Micro-ATX board uses the AMD B840 chipset, supporting a compact build with a strong feature set. AM5 socket compatibility ensures support for AMD’s newest processors, giving builders access to the latest CPU advancements. Read More...
DDR5 memory support with speeds up to 8200 MT/s (OC) and four DIMM slots allow for high-capacity, high-speed configurations. Two M.2 slots supporting Gen4 speeds provide rapid storage expansion, while 2.5 GbE networking suits demanding home or office networks.
Product Information
| Product Name | Gigabyte B840M DS3H |
|---|---|
| Brand | Gigabyte |
| Model Number | B840M DS3H |
Product Features
| Socket | AM5 |
|---|---|
| Chipset | AMD B840 |
| Form Factor | Micro-ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-8200 (OC) / DDR5-4800 (JEDEC) |
| M.2 Slots | 2 x M.2 |
| M.2 Support | Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 1 x PCIe x16 |
| Primary Pcie Version | PCIe 4.0 |
| Ethernet | 2.5 GbE |
| Rear USB | 1 x USB‑C 5 Gbps; 2 x USB‑A 5 Gbps; 4 x USB‑A (USB 2.0) |
| Internal USB Headers | 1 x USB‑C header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS |
| RGB Headers | 2 x ARGB; 1 x RGB |
