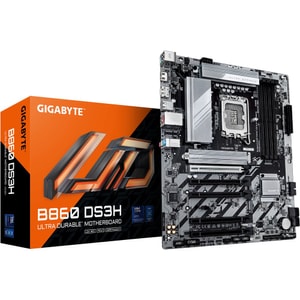

Gigabyte B860 DS3H
Key Features
- Socket
- LGA1851
- Chipset
- Intel B860
- Form Factor
- ATX
- Memory Type
- DDR5
- M.2 Slots
- 2 x M.2
Price comparison • £137.47 to £239.64 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Gigabyte B860 DS3H features 2.5 GbE ethernet, supporting high-speed network transfers for demanding gaming or creative workloads. This ATX board uses the Intel B860 chipset, providing a solid foundation for mainstream Intel processors and a balanced set of connectivity options. LGA1851 socket compatibility ensures support for the latest Intel CPUs, giving system builders access to current-generation performance. Read More...
DDR5 memory support with speeds up to DDR5-9066 (OC) and four DIMM slots allows for both high bandwidth and substantial memory capacity, up to 256 GB. Two M.2 slots are present, with one supporting Gen5 and the other Gen4, enabling ultra-fast NVMe storage for both primary and secondary drives. The inclusion of a PCIe 5.0 x16 slot delivers maximum graphics bandwidth for top-tier GPUs.
Product Information
| Product Name | Gigabyte B860 DS3H |
|---|---|
| Brand | Gigabyte |
| Model Number | B860 DS3H |
Product Features
| Socket | LGA1851 |
|---|---|
| Chipset | Intel B860 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-9066 (OC) / DDR5-5600 (JEDEC) |
| M.2 Slots | 2 x M.2 |
| M.2 Support | 1 x Gen5; 1 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 1 x PCIe x16 |
| Primary Pcie Version | PCIe 5.0 |
| Ethernet | 2.5 GbE |
| Rear USB | 1 x USB‑C 20 Gbps (USB 3.2 Gen 2x2); 1 x USB‑A 10 Gbps (USB 3.2 Gen 2); 4 x USB‑A 480 Mbps (USB 2.0) |
| Internal USB Headers | 1 x USB‑C header (USB 3.2 Gen 1); 1 x USB 3.2 Gen 1 header; 4 x USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS |
| RGB Headers | 3 x ARGB; 1 x RGB |
