Antec AX90
Key Features
- Case Size
- Mid Tower
- Motherboard Support
- ATX / Micro-ATX / Mini-ITX
- Maximum GPU Length
- 385 mm
- Maximum CPU Cooler Height
- 160 mm
- Radiator Support (Max)
- 360 mm
Best price £44.99 • See more in PC Cases
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Delivery time may vary
Standard delivery in 3 working daysProduct Description

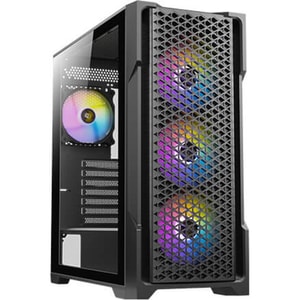

The Antec AX90 is a mid tower supporting ATX, Micro-ATX, and Mini-ITX motherboards, offering flexibility for a wide range of builds and upgrade paths. This case accommodates graphics cards up to 385 mm in length and tower coolers up to 160 mm in height, so large GPUs and substantial air coolers are well supported. With ATX PSU compatibility and a maximum PSU length of 220 mm, it provides ample space for standard power supplies. Read More...
Radiator support includes front and top positions for up to 360 mm units, a side mount for up to 240 mm, and a 120 mm rear position, giving builders scope for advanced liquid cooling setups. There are a total of eleven fan mounting positions, with key locations at the front, top, and side, and the case comes with three 120 mm fans pre-installed at the front and one at the rear. The tempered glass side panel offers a clear view of your components, while dust filters and integrated RGB lighting round out the feature set.
Product Information
| Product Name | Antec AX90 |
|---|---|
| Model Number | AX90 |
| Brand | Antec |
Product Features
| Case Size | Mid Tower |
|---|---|
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| Maximum GPU Length | 385 mm |
| Maximum CPU Cooler Height | 160 mm |
| Radiator Support (Max) | 360 mm |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 mm; Top: 120 / 140 / 240 / 280 / 360 mm; Side: 120 / 240 mm; Rear: 120 mm |
| Fan Mounts | Front: 3 x 120 mm / 3 x 140 mm; Top: 3 x 120 mm / 2 x 140 mm; Side: 2 x 120 mm; PSU Shroud: 2 x 120 mm; Rear: 1 x 120 mm |
| Fans Included | 3 x 120 mm front; 1 x 120 mm rear |
| Maximum Psu Length | 220 mm |
| PSU Form Factor | ATX |
| Drive Bays | 2.5" x 2; 3.5" x 2 |
| Front I/O | USB-A x 2 (USB 2.0); USB-A x 1 (USB 3.0); 3.5 mm audio x 1; MIC x 1 |
| Side Panel | Tempered glass |
| RGB Lighting | Yes |
| Colour | Black |
| Product Dimensions | 486 x 210 x 473 mm |
| Weight | 6.77 kg |
| Dust Filters | Yes |
