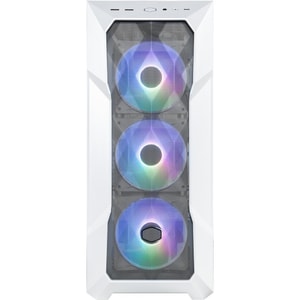

Cooler Master MasterBox TD500 Mesh V2
Key Features
- Case Size
- Mid Tower
- Motherboard Support
- E-ATX / ATX / Micro-ATX / Mini-ITX
- Maximum GPU Length
- 410 mm
- Maximum CPU Cooler Height
- 165 mm
- Radiator Support (Max)
- 360 mm
Price comparison • £69.99 to £89.99 • See more in PC Cases
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Product Description
The Cooler Master MasterBox TD500 Mesh V2 is a Mid Tower, giving you flexibility for standard and high-performance builds. It supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, so you can choose from a wide range of board sizes for advanced or compact configurations. This case accommodates graphics cards up to 410 mm in length, ensuring compatibility with most modern GPUs, and allows CPU tower coolers up to 165 mm in height for robust processor cooling. Read More...
You’ll find support for ATX power supplies up to 200 mm, and radiator mounts at the front, top, and rear, with space for up to 360 mm units in both front and top positions. There are seven fan positions, including up to three 120 mm or two 140 mm fans at both the front and top, plus a 120 mm rear mount, giving you comprehensive airflow options. Three 120 mm ARGB fans are included, and the tempered glass side panel provides a clear view of your components. This model features USB-C, USB-A, and audio ports on the front panel, plus dust filters and RGB lighting for a clean, visually striking build.
Product Information
| Product Name | Cooler Master MasterBox TD500 Mesh V2 |
|---|---|
| Model Number | MasterBox TD500 Mesh V2 |
| Brand | Cooler Master |
Product Features
| Case Size | Mid Tower |
|---|---|
| Motherboard Support | E-ATX / ATX / Micro-ATX / Mini-ITX |
| Maximum GPU Length | 410 mm |
| Maximum CPU Cooler Height | 165 mm |
| Radiator Support (Max) | 360 mm |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360 mm; Top: 120 / 140 / 240 / 280 / 360 mm; Rear: 120 mm |
| Fan Mounts | Front: 3 x 120 / 2 x 140 mm; Top: 3 x 120 / 2 x 140 mm; Rear: 1 x 120 mm |
| Fans Included | 3 x 120 mm ARGB |
| Maximum Psu Length | 200 mm |
| PSU Form Factor | ATX |
| Drive Bays | 3 x 2.5"; 2 x 3.5" |
| Front I/O | USB-A x 2; USB-C x 1; 3.5 mm audio x 1 |
| Side Panel | Tempered glass |
| RGB Lighting | Yes |
| Colour | White |
| Product Dimensions | 500 x 210 x 499 mm |
| Weight | 7.7 kg |
| Dust Filters | Yes |
