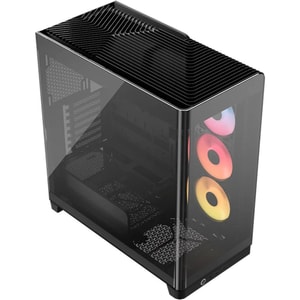

Corsair FRAME 4500X LX-R RGB iCUE LINK
Key Features
- Case Size
- Mid Tower
- Motherboard Support
- E-ATX / ATX / Micro-ATX / Mini-ITX
- Maximum GPU Length
- 460 mm
- Maximum CPU Cooler Height
- 185 mm
- Radiator Support (Max)
- 360 mm
Price comparison • £109.99 to £206.81 • See more in PC Cases
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Corsair FRAME 4500X LX-R RGB iCUE LINK takes ATX power supplies up to 250 mm, giving builders flexibility for high-wattage units and modular cabling. As a mid tower, this case strikes a balance between compact footprint and internal capacity, suiting a wide range of mainstream and enthusiast builds. Support for E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards ensures broad compatibility for different system layouts. Read More...
A maximum graphics card length of 460 mm means even flagship GPUs will fit comfortably, while 185 mm of CPU cooler clearance accommodates tall tower air coolers. Radiator support covers top and side mounts up to 360 mm, plus a rear 140 mm position, offering strong potential for custom or all-in-one liquid cooling. There are ten fan positions in total, with key locations including three 120 mm or two 140 mm fans at both the top and side, and a single rear mount, so airflow can be tailored for demanding hardware.
Product Information
| Product Name | Corsair FRAME 4500X LX-R RGB iCUE LINK |
|---|---|
| Model Number | FRAME 4500X LX-R RGB iCUE LINK |
| Brand | Corsair |
Product Features
| Case Size | Mid Tower |
|---|---|
| Motherboard Support | E-ATX / ATX / Micro-ATX / Mini-ITX |
| Maximum GPU Length | 460 mm |
| Maximum CPU Cooler Height | 185 mm |
| Radiator Support (Max) | 360 mm |
| Radiator Support | Top: 360 mm / 280 mm / 240 mm; Side: 360 mm / 280 mm / 240 mm; Rear: 120 mm / 140 mm |
| Fan Mounts | Top: 3 x 120 mm / 2 x 140 mm; Side: 3 x 120 mm / 2 x 140 mm; Rear: 1 x 120 mm / 1 x 140 mm; Bottom: 1 x 120 mm |
| Fans Included | 3 x 120 mm |
| Maximum Psu Length | 250 mm |
| PSU Form Factor | ATX |
| Drive Bays | 2.5" x 2; 3.5" x 1 |
| Front I/O | USB-C x 1; USB-A (USB 3.2) x 2; 3.5 mm audio x 1 |
| Side Panel | Tempered glass |
| RGB Lighting | Yes |
| Colour | Black |
| Product Dimensions | 478 x 246 x 499 mm |
| Weight | 11.7 kg |
| Dust Filters | Yes |
