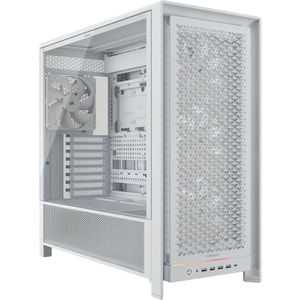

Corsair FRAME 5000D RS
Key Features
- Case Size
- Mid Tower
- Motherboard Support
- E-ATX / ATX / Micro-ATX / Mini-ITX
- Maximum GPU Length
- 450 mm
- Maximum CPU Cooler Height
- 175 mm
- Radiator Support (Max)
- 420 mm
Price comparison • £90.57 to £125.64 • See more in PC Cases
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Standard delivery in 3 working days
Delivery time may varyProduct Description
The Corsair FRAME 5000D RS clears GPUs up to 450 mm and CPU coolers up to 175 mm, allowing for high-performance graphics cards and tall tower coolers in demanding builds. This mid tower case accommodates E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards, supporting a broad range of system layouts. ATX power supplies up to 250 mm fit comfortably, so you can select from a wide variety of high-wattage units. Read More...
Radiator support covers top sizes up to 420 mm, with additional mounting for 360 mm radiators at the front and side, giving flexibility for custom water-cooling loops or large all-in-one coolers. There are up to eleven fan positions, including three at the front, three at the top, and three at the side, supporting both 120 mm and 140 mm fans for robust airflow options. Four 140 mm fans are included, so you have strong cooling from the start. The front I/O panel offers USB-C, four USB-A ports, and a 3.5 mm audio jack for modern connectivity. A tempered glass side panel, integrated RGB lighting, and dust filters complete the package for a visually striking and clean build.
Product Information
| Product Name | Corsair FRAME 5000D RS |
|---|---|
| Model Number | FRAME 5000D RS |
| Brand | Corsair |
Product Features
| Case Size | Mid Tower |
|---|---|
| Motherboard Support | E-ATX / ATX / Micro-ATX / Mini-ITX |
| Maximum GPU Length | 450 mm |
| Maximum CPU Cooler Height | 175 mm |
| Radiator Support (Max) | 420 mm |
| Radiator Support | Top: 420 mm; Front: 360 mm; Side: 360 mm; Rear: 140 mm |
| Fan Mounts | Front: 3×120 mm / 3×140 mm / 2×200 mm; Top: 3×120 mm / 3×140 mm; Side: 3×120 mm / 3×140 mm; Rear: 1×120 mm / 1×140 mm; PSU Shroud: 2×120 mm |
| Fans Included | 4× 140 mm |
| Maximum Psu Length | 250 mm |
| PSU Form Factor | ATX |
| Drive Bays | 2.5" x 6; 3.5" x 2 |
| Front I/O | USB-A x 4; USB-C x 1; 3.5 mm audio x 1 |
| Side Panel | Tempered glass |
| RGB Lighting | Yes |
| Colour | Black |
| Product Dimensions | 542 x 250 x 556 mm |
| Weight | 15.5 kg |
| Dust Filters | Yes |
