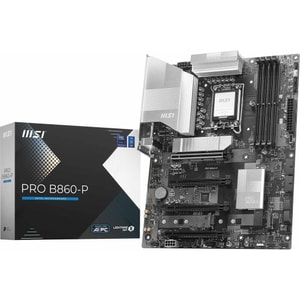

MSI PRO B860-P
Key Features
- Socket
- LGA1851
- Chipset
- Intel B860
- Form Factor
- ATX
- Memory Type
- DDR5
- M.2 Slots
- 3 x M.2
Best price £149.00 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Delivery time may vary
Standard delivery in 3 working days
3-5 daysProduct Description
The MSI PRO B860-P is built on the Intel B860 chipset, offering a robust feature set for mainstream builds and PCIe 5.0 support for next-generation graphics cards and storage. This ATX board provides a roomy layout for expansion and airflow, while DDR5 memory compatibility enables higher bandwidth and future-ready performance. Three M.2 slots supporting one Gen5 and two Gen4 drives allow for rapid NVMe storage, giving your system fast load times and flexible upgrade paths. Read More...
Four DIMM slots accommodate up to 256 GB of DDR5 memory, so demanding multitasking and workstation tasks are well supported. With 5 GbE networking, you’ll benefit from high-speed wired connections suitable for advanced home or office infrastructure, and two PCIe x16 slots enable multi-GPU setups or additional add-in cards for enhanced versatility.
Product Information
| Product Name | MSI PRO B860-P |
|---|---|
| Brand | MSI |
| Model Number | PRO B860-P |
Product Features
| Socket | LGA1851 |
|---|---|
| Chipset | Intel B860 |
| Form Factor | ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-8800 (OC) / DDR5-4800 (JEDEC) |
| M.2 Slots | 3 x M.2 |
| M.2 Support | 1 x Gen5; 2 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 2 x PCIe x16 |
| Primary Pcie Version | PCIe 5.0 |
| Ethernet | 5 GbE |
| Rear USB | 2 x USB‑A 10 Gbps; 2 x USB‑A 5 Gbps; 4 x USB‑A 2.0; 1 x USB‑C 10 Gbps |
| Internal USB Headers | 1 x USB-C 10Gbps header; 4 x USB 5Gbps Type A (front); 4 x USB 2.0 (front) |
| CPU Power | 1 x 8‑pin EPS + 1 x 4‑pin EPS |
| RGB Headers | 2 x ARGB; 1 x RGB |
