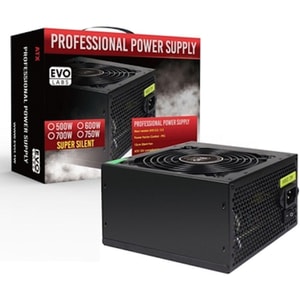

The Evo Labs E-500BL 500W PSU delivers 500 W, providing enough power for entry-level to mid-range systems with modest graphics cards and multiple storage drives. This unit follows the ATX 2.2/2.3 standard, supporting a wide range of motherboards and cases. The non-modular cable management means all cables are permanently attached, suiting builds where cable routing flexibility is less of a concern. Read More...
This PSU uses the ATX form factor, fitting standard desktop cases, and measures 140 mm in length for compatibility with most mid-tower designs. It features a 120 mm fan to maintain airflow, and operates at under 17 dB for minimal noise in quiet environments. Four SATA power connectors are available to support multiple SSDs and HDDs in storage-heavy builds.
Product
| Product Name | Evo Labs E-500BL 500W PSU |
|---|---|
| Brand | Evo Labs |
| Model Number | BR500-12BL |
Product Features
| Wattage | 500 W |
|---|---|
| Modularity | Non-modular |
| ATX Standard | ATX 2.2/2.3 |
| PCIe 6+2 connectors | None |
| EPS Connectors | 1 x 4-pin CPU |
| 24-pin ATX connector | 1 x 24-pin ATX |
| Sata Power Connectors | SATA x 4 |
| Pata Connectors | PATA x 2 |
| Form Factor | ATX |
| PSU Length | 140 mm |
| Fan | 120 mm |
| AC Input | 230 V only |
| Colour | Black |
| Noise Level | <17 dB |
