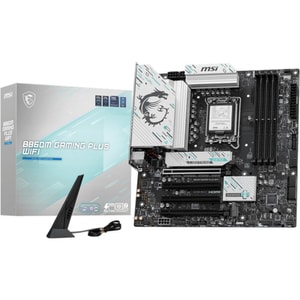

MSI B860M GAMING PLUS WIFI
Key Features
- Socket
- LGA1851
- Chipset
- Intel B860
- Form Factor
- Micro‑ATX
- Memory Type
- DDR5
- M.2 Slots
- 3 x M.2
Price comparison • £159.99 to £175.99 • See more in Motherboards
Price History
This product's price history summarises lows, averages and highs from UK retailer listings for the selected period.
Sameday - 2 days with some exceptions
Standard delivery in 3 working days
Delivery time may vary
3-5 daysProduct Description
The MSI B860M GAMING PLUS WIFI is built on the Intel B860 chipset, offering a strong feature set for mainstream Intel builds with support for the latest processors and advanced connectivity. Its Micro-ATX form factor provides a compact footprint without sacrificing expansion options, making it suitable for space-conscious systems. DDR5 memory support enables higher bandwidth and improved multitasking, while the board accommodates speeds up to DDR5-8800+ (OC) or DDR5-6400 (JEDEC) for demanding applications. Read More...
This model features three M.2 slots supporting one Gen5 and two Gen4 drives, giving builders rapid storage options for both boot and data drives. Four PCIe x16 slots and PCIe 5.0 support enable high-bandwidth GPU and add-in card configurations, so advanced graphics or specialist cards can be accommodated. 5 GbE networking delivers fast wired connections for high-speed local transfers or gaming.
Product Information
| Product Name | MSI B860M GAMING PLUS WIFI |
|---|---|
| Brand | MSI |
| Model Number | B860M GAMING PLUS WIFI |
Product Features
| Socket | LGA1851 |
|---|---|
| Chipset | Intel B860 |
| Form Factor | Micro‑ATX |
| Memory Type | DDR5 |
| Max Memory | 256 GB |
| Memory Slots | 4 x DIMM |
| Memory Speed Support | DDR5-8800+ (OC) / DDR5-6400 (JEDEC) |
| M.2 Slots | 3 x M.2 |
| M.2 Support | 1 x Gen5; 2 x Gen4 |
| SATA Ports | 4 x SATA |
| PCIE x16 Slots | 4 x PCIe x16 |
| Primary Pcie Version | PCIe 5.0 |
| Ethernet | 5 GbE |
| Bluetooth | Bluetooth 5.4 |
| Rear USB | 1 x Thunderbolt 4 (40 Gbps, USB‑C); 1 x USB‑A 10 Gbps; 1 x USB‑C 5 Gbps; 2 x USB‑A 5 Gbps; 2 x USB‑2.0 |
| Internal USB Headers | Front USB-C 10 Gbps, 2 × USB 5 Gbps headers, 2 × USB 2.0 headers |
| CPU Power | 1 x 8‑pin EPS + 1 x 4‑pin EPS |
| RGB Headers | 2 x ARGB; 1 x RGB |
